Next Generation Concentrated Polar Power Now Under Development

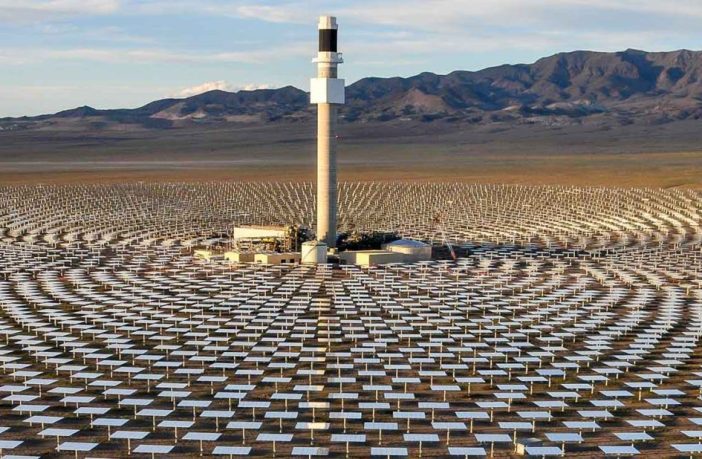

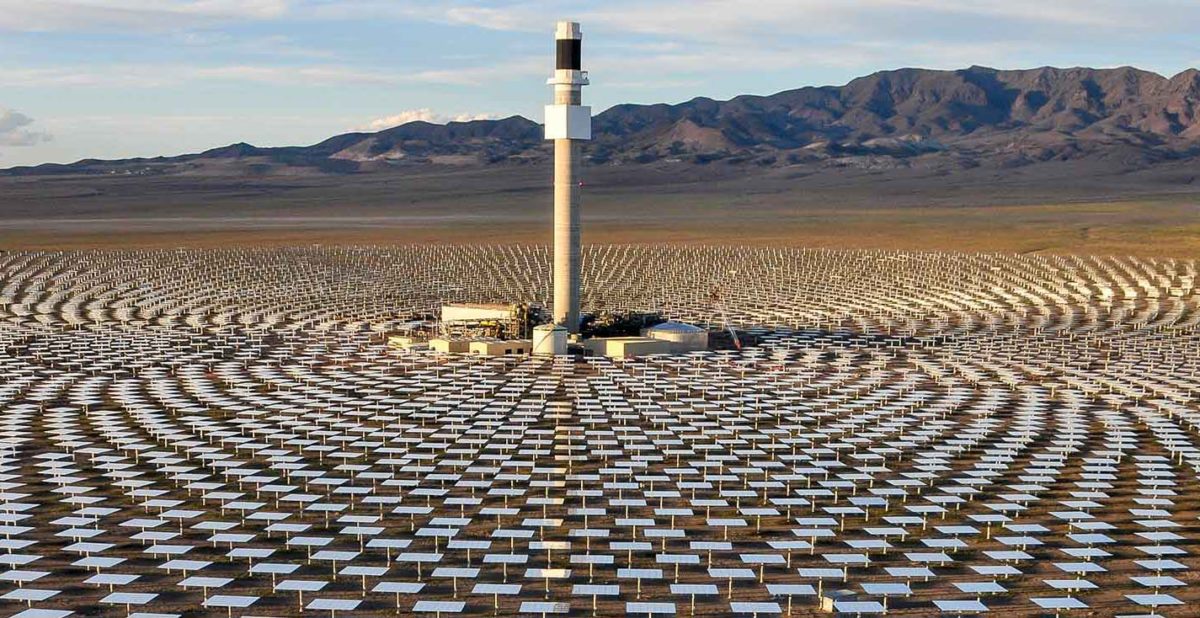

  • Concentrated solar power (CSP) uses heliostat mirrors to direct sunlight into a collection tower, storing heat energy in abundant mediums like rocks, sand or molten salt for highly available energy dispatch.
  • High-heat and available energy is a key element in many machine and industrial processes, so the USA’s National Renewable Energy Laboratory (NREL) and the Department of Energy (DoE) are working on the next generation of CSP facilities.

The Gen3 CSP program targets an energy cost of $0.05/kWh. The DoE has identified opportunities in three material pathways: storing heat in sand-like particles, in liquids like molten salt, and in gases, such as the technology developed by Brayton Energy. The DoE selected particle-based storage as the main method for its funding, but also opened the door for NREL to run a two-year liquid molten salt research program.

Challenges, breakthroughs

NREL’s Craig Turchi, a leader in thermal energy science and technology, said molten salts are a desirable option for heat transfer and storage as they are easy to work with and can be pumped through pipes and heat exchangers. However, there are some practical challenges, which Turchi’s team is currently working on overcoming.

Prototype molten chloride salt tank
Image: Dennis Schroeder, NREL

Though molten salts are easy to move, they are also corrosive to their holding tanks and pipes. “We actually solved that problem by and large. NREL and partners did a lot of great science on the salt chemistry—how to purify it, how to make it relatively noncorrosive if you control the chemistry, and we demonstrated that in the lab,” said Turchi.

The next hurdle was finding the right kinds of salts for the Gen3 CSP liquid path. Commercial systems often use nitrate salts, but NREL said these begin to degrade at higher temperatures. NREL targets high temperatures for more efficient energy conversion, so it settled on chloride salts for their higher level of stability under extreme temperatures.



Another challenge is keeping the storage tank hot. The molten salts used freeze at 400 C, so extra insulation is needed. “Our design is a steel tank, but whereas the current tanks are insulated on the outside, our proposed tank was insulated on the inside to protect the steel,” said Turchi. The DoE awarded NREL $2 million to build a prototype tank, which is being built on NREL’s campus in Golden, Colorado.

Related news: The four types of concentrated solar power explained

Kerry Rippy, an NREL expert in inorganic chemistry, and her team explored electrochemical methods to further remove corrosive impurities in molten chloride salt. She is also developing electrochemical sensors to be placed inside storage tanks to monitor the purity of the salts during experimentation.

“There are multiple potential avenues for this research to be valuable. It can be beneficial for solar fuel synthesis; it could enable high-temperature fuel cells, and the nuclear industry is also really interested in this research,” said Rippy.

Solar PV and energy storage are excellent in providing reliable electricity, but some industrial processes require high-heat or large amounts of available energy. This has led to developments in CSP, and in other technologies, which are already being met with commercial success.

Recently, startup company Rondo Energy closed a $22 million Series A funding round to scale its renewable energy heat batteries. The membrane-based battery stores solar and wind energy in solids at temperatures over 1,200 C. The company said it plans to begin manufacturing and delivering systems to customers later this year.

In November, Heliogen partnered with Bloom Energy to create green hydrogen fuel. Heliogen’s CSP creates heat, steam, and electricity from concentrated sunlight. It was paired with Bloom’s solid-oxide, high-temperature electrolyzer to make the fuel. The company said hydrogen can be made 45% more efficiently than low-temperature PEM and alkaline electrolyzers. Electricity dictates nearly 80% of the cost of hydrogen from electrolysis. The CSP method reduces the need for electricity, using heat to aid its operations

Author: Ryan Kennedy

This article was originally published in pv magazine USA and is republished with permission.
