World’s First Offshore Renewable Hydrogen Production Pilot

  • Through this pilot site, French hydrogen production engineering company, Lhyfe, will produce the first kilograms of renewable green hydrogen at quay and then at sea, operating automatically, in the most extreme conditions.
  • The company has voluntarily set the bar high by installing its production unit on a floating platform, connected to a floating wind turbine.

The Sealhyfe platform must therefore meet several major and unprecedented challenges, including:

  • Performing all stages of hydrogen production at sea, i.e. converting the electrical voltage from the floating wind turbine, pumping, desalinating and purifying seawater, and breaking the water molecules via electrolysis to obtain renewable green hydrogen;
  • Managing the effects on the system of the platform’s motion: list, accelerations, swinging movements, etc.;
  • Enduring environmental stress: Sealhyfe will have to survive the premature ageing of its parts (corrosion, impacts, temperature variations, etc.);
  • Operating in an isolated environment: the platform must operate fully automatically, without the physical intervention of an operator, except for scheduled maintenance periods which have been optimally integrated from the design phase.

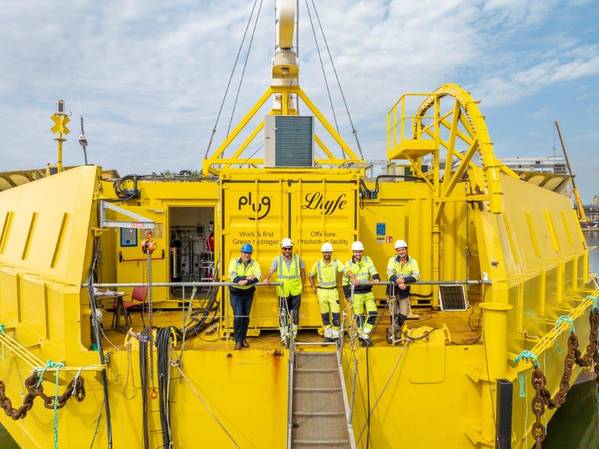

Image credit: Lhyfe

A demonstrator developed with top experts

To achieve this technological feat, Lhyfe relied on the facilities of the offshore testing site, SEM-REV, operated by Centrale Nantes.

  • The production unit was installed on the WAVEGEM wave energy platform developed by Geps Techno.
  • At the end of the quayside test phase, the Sealhyfe platform will integrate the SEM-REV offshore testing area, off the coast of Le Croisic, about 20 kilometres from the coast.
  • The device will then be supplied with electricity by the pioneering floating wind turbine installed within the offshore test site in 2018 and still unique in France today.

The electrolyser was supplied and optimized for these exceptional operating conditions by Plug Power, one of the market leaders that is strongly engaged in the offshore route. Together, Plug and Lhyfe have developed the first electrolyser capable of operating on a floating platform.

A multi-phase trial

A first six-month trial phase is being started at quay, in the port of Saint-Nazaire, to obtain initial reference measurements and test all of the systems (desalination and cooling systems, stack behaviour, remote control, energy management, resistance to environmental conditions, etc.).

At the end of this first stage, Sealhyfe will spend a period of 12 months off the Atlantic coast. It will be installed less than a kilometre from the floating wind turbine, fixed to the ground by a system of anchors and connected to the site’s underwater hub using an umbilical designed and dedicated for this application (energy and data transfer).

At the end of this trial, Lhyfe will have a substantial volume of data, which should allow it to design mature offshore production systems, and to deploy robust and proven technologies on a large scale, in keeping with the EU’s objective to produce 10 million tonnes a year of renewable hydrogen by 2030.

Sealhyfe has the capacity to produce up to 400 kg of renewable green hydrogen a day, equivalent to 1MW of power.

Author: Bryan Groenendaal

How is renewable hydrogen produced? Its simple:

  1. Connection with renewable electricity source like wind or solar power
  2. Pumping & electrolysis of water
  3. Extraction of hydrogen & release of oxygen
  4. Purification & compression of H₂
